Wednesday, April 12, 2017

Designers & Developers: Working Together


“…developers have a huge amount to add to discussions about design.” And because of this, it’s very important to include the development team (or developer) in the conversation early on.

When developers are not included in the conversation, what may seem like a small change in the designers eyes, may very well have a huge impact on the website and its performance. In addition, a lack of communication can also “lead to designs that are impossible to build, designs that introduce unnecessary technical complications, endless back and forth between the designer and developer as they struggle to fix problems created by the designer, wasted days of revision and iteration — [and] all because the developer wasn’t consulted.”

Not only is the developer affected by this, but the client is as well. If the client signed off on designs before you showed them to the developer, it reflects poorly on the whole team if the developer isn’t able to execute the designs. “The decisions we make as designers have far greater ramifications than we are aware of.”

Developers might also suggest an idea that the designer may have never thought of or dismissed as impossible. Because many designers are not well versed in development, they don’t know all the capabilities possible. By collaborating with the development team, they could possibly take your ideas and build upon them, taking them further than you could have ever thought.

Something else to keep in mind is that developers make design decisions all the time. “…as a developer delves into building a project, they will have to make decisions that affect and refine the design. By involving the developer in the initial design discussions, they will be in a better position to fill in the blanks. And when compromises in the design must be made, they will be in a better position to make those calls.”

And finally, getting developers involved will result in the developer feeling more engaged in the project. “Too often, developers are at the end of a long chain of decision-making. Their voice isn’t heard because they’re brought into the process far too late. This leaves them feeling no ownership over the project. By bringing them in earlier, they will feel more connected to the work and more appreciated too.”

As you can see, your work flow can only benefit from collaborating with and working closely with the development team. Take a look at Matt Gemmell’s article: How Designers Can Help Developers, in which he points out some great tips.



Designers Helping:

  • Use an intelligent method of version-control
  • Keep your layers
  • Name all your layers meaningfully
  • Use groups, and do so sensibly
  • Prune unneeded layers
  • Use Layer Comps
  • Keep everything as vectors and scaleable effects



Helping Developers:

  • Learn how to preserve rounded corners while resizing
  • Design at 72ppi
  • Snap to whole pixels
  • Always use RGB mode
  • Asset-preparation is part of your job
  • Be careful with fonts
  • Mimic the platform’s text-rendering (where possible)
  • Be sure of design dimensions
  • Use the platform’s idioms
  • Consider screen-size and their contexts
  • Use genuine or at least realistic content
  • Respect the global light source
  • Make navigational or organizational constructs explicit
  • Export cut-ups without compression
  • Ask about shadows
  • Understand how buttons are constructed

Gemmell also wrote a follow up: How Developers Can Help Designers.


References:
http://www.smashingmagazine.com/2014/11/21/why-you-should-include-your-developer-in-the-design-process/
http://mattgemmell.com/how-designers-can-help-developers/





Preparing Your Photoshop Files for Development



Web Graphic File Formats


JPEG: Joint Photographic Experts Group

  • Best for continuous tone photographs, glows, gradients, drop shadows, etc.
  • Supports 24 bit color

PNG: Portable Network Graphics

  • Superior File format to use with transparency
  • Use PNG 24 or 32

GIF: Graphic Information Format

  • 8 bit color (256 indexed colors)
  • Use for flat or simple graphic images
  • Transparency and GIF animations


Optimizing Graphics

JPEG compression is called lossy and will cause your image to lose quality each time it is compressed. It reduces file size by discarding information, so if you need to make a change, go back to your original psd file and re-optimize.


Save for Web...

  1. Go to File > Save for Web
  2. Choose file type





Saving as PNG

To get the best quality transparency use PNG 24 or 32. The file size is larger than the GIF but it is superior in quality.


Saving as JPEG

  1. Use the 2/4Up tab to view the image in different compression ratios
  2. Select JPEG
  3. Change quality and look at the difference in compression and image quality





Extract Assets...
(Only available in AdobeCC)

Make sure your layers are cleaned up, delete any layers you are not using and have them all named properly before you go to extract assets.

  1. Select the layers you want to save out
  2. Go to File > Extract Assets






By selecting the "Extract" button, it will export your layers based on what file type you select. The files will be saved to the designated folder of your choice.


FILE MARKUP (REDLINE)

As you are working on your design, you need to make sure to check the sizes of your design elements.
  • How wide is your page?
  • What size is your header, footer?
  • What is the width of your column(s)?
  • Do they add up to the total width?
  • What are your font specs?
  • What typeface, size, style, etc. are your fonts?
  • What is the leading?
  • How many pixels do you want between paragraphs?

You can either printout a copy of your design and mark it up with the dimensions of all your elements or do it digitally. The development team (or you) will need this document so they know what your specs are and can develop exactly what you designed.


FTP AND THE PRATT SERVER

For your site to show on the web, you must upload or FTP (file transfer protocol) them to your web hosting server. If you don't have one, you can use the Pratt server, and you will need an FTP program. There are many free ones; Pratt has CyberDuck.


Here are your ftp settings: Pratt uses SFTP which is secure.

server: mysite.pratt.edu
name: user name
password: same as email and onekey


Server info

  1. Make sure you have a public_html directory.
  2. If you don't, then create one.
  3. Copy all your files to this folder.
  4. Remember that the first file to load will always be your index.html file.




Wednesday, April 5, 2017

The Basics of User Experience Design

What is UX?

“User experience (abbreviated as UX) is how a person feels when interfacing with a system. The system could be a website, a web application or desktop software and, in modern contexts, is generally denoted by some form of human-computer interaction (HCI).” –Jacob Gube

UX is relatively new, and the term “user experience” was coined by Dr. Donald Norman, from the Nielsen Norman Group, a cognitive science researcher who was also the first to describe the importance of user-centered design – the idea that design decisions should be based on the users needs' and wants.

User Experience encompasses many different factors. Some are controlled by designers and developers, and some are environmental or simply just the user's preference. These factors include: usability, accessibility, performance, design/aesthetics, utility, ergonomics, overall human interaction and marketing.1






Although they are related, it’s important to note that UX is not the same as usability. UX is the experience, emotion, intuition and connection a user feels when using a site or product. Whereas usability is more about the effectiveness of a site design and how user-friendly it is; it’s a key component of the overall user experience.

UX is NOT one size fits all, and it won’t work in every situation for every user. Why? Because everyone is different. What works for one user, might have the opposite effect on another. The best we can do is design for specific experiences and promote certain behaviors, but we can’t manufacture, impose or predict the actual experience itself…A design must be tailored to the goals, values, production process and products of its website.2


“In terms of design, user experience is just as important as visual identity…It doesn’t matter what your site or app looks like if people don’t know how to interact with it. And moreover, they need to enjoy that interaction.” –Carrie Cousins
“Experience design is the design of anything, independent of medium, or across media, with human experience as an explicit outcome, and human engagement as an explicit goal.” –Jesse James Garrett








Who Does UX?







User Researcher



  • Informs strategy by identifying user needs and behaviors through interviews, surveys, and existing data
  • Carries out user testing
  • Compares performance and measures success
  • Deliverable Examples: Usability test report, heuristic analysis, personas, user scenarios



Content Strategist



  • Determines content requirements
  • Informs content creation by establishing content level goals
  • Ensures content is right for both the business and the users
  • Deliverable Examples: Content Inventory, Content Gap Analysis, Competitive Analysis, Content Matrix, Content Plan



Information Architect (IA)



  • Defines the structure of a system
  • Defines how content is organized and discovered
  • Focuses on overall relationships between bodies of information
  • Deliverable Examples: Site map, wireframes, high-level flows




Interaction Designer (IxD)



  • Defines interactions, affordances, and feedback of a system
  • Focuses on how the user interacts with an interface to carry out their goal.
  • Deliverable Examples: Task flows, wireframes, prototypes, storyboards




What is an Affordance?

A potential action that is made possible by a given object or environment; especially, one that is made easily discoverable.3

To state it more simply, affordances are those design elements that help the user understand how to use the interface.








UX Process

There are many processes when executing good UX design, and you’ll find different opinions on which is best. Some of those processes are:


5D’s or Waterfall Process


1. DISCOVER

  • Gather information
  • Lead brainstorming
  • Define project scope
  • Do a competitive analysis
  • Define personas
  • Create user stories, use cases

2. DEFINE

  • Develop the interaction model
  • Define content & functionality requirements
  • Define the information architecture
  • Create a project plan

3. DESIGN

  • Sketch
  • Create paper prototypes
  • Evaluate usability of sketches
  • Create wireframes, more prototyping
  • Explore visual designs

4. DEVELOP

  • Architecture Design, UML diagram/Class diagram, Daily Scrum, Code iteration cycles, Interim installers, Release management, Unit testing, Code refactoring, Documentation
  • Deliverable: working system model and source code

5. DELIVER

  • Use cases, Test cases, Testing, Regression testing, Test reports, Build releases
  • Deliverable: Shippable release




The problem with the 5D model is that it suggests each of the steps are independent, like a waterfall. In reality, it is cyclical and therefore UX SHOULD BE ITERATIVE!






Lean UX – An Agile Process

Jeff Gothelf’s Lean UX Process






Lean UX vs Agile UX






Don’t let process become an obstacle. Be ready to adapt your process based on type of project, size of team, and your client. No mater what process you choose, UX designers perform various tasks during the process.



What does UX look like?


  • Research & Evaluation of current system
  • User Surveys
  • Usability Test Report
  • Features & Functionality Requirements
  • Experience Maps
  • Competitive Reviews or Analysis
  • Develop Personas or Archetypes
  • Social Strategy
  • Structure & Systems Diagrams
  • Sitemaps
  • Sketches
  • User Flows
  • Taks Flows
  • Wireframes: sketch, low/high-fidelity, annotated
  • Prototyping


“In the end deliverables are merely artifacts of the design process. They are not the final design, they are not the artifact of experience. The end user never interacts with them...they interact with the product or service that is actually delivered.”4


What the #$%@ is UX Design?





3 Ways Good Design Makes You Happy






UX Resources:
UX is NOT UI
Spectrum of UX
Jesse James Garrett
Adaptive Path
UX Myths
User Experience Professionals Association
Why User Experience Cannot be Designed
Lean UX Manifesto
25 UX Videos Worth Your Time
Agile vs Lean UX
Lean vs Agile US: Is There A Difference?
Nielsen Norman Group
UX Mastery Resources/Techniques
Video: User Interface Techniques




References:

  1. http://designshack.net/articles/why-does-user-experience-matter/
  2. http://www.smashingmagazine.com/2010/10/05/what-is-user-experience-design-overview-tools-and-resources/
  3. http://en.wiktionary.org/wiki/affordance
  4. http://52weeksofux.com/post/346650807/deliverables-vs-delivery






Activity!!


Rules:
  • One thought per Post-it
  • Make thought as clear as possible, in least amount of words
  • Sketches are encouraged
  • Keep corners clear (in case you need space for additional notes)
  • Be specific


Once you have your thoughts down, it's time to group! Organize your thoughts into groups based on one of these types of layouts:








References:
http://www.slideshare.net/luxrco/become-a-stickynote-ninja-workshop-ux-week-2008
http://stickynoteninja.com/





Wednesday, March 29, 2017

Mobile & Tablet Design Basics

How is mobile different?
“The first thing we need to understand about mobile design is that it’s different – and not just with regards to size. The physicality and specifications of mobile devices impart different design affordances and requirements. Because mobile devices are lighter and more portable, we often find it more convenient to use them. Consequently, through this more regular use, we feel a unique, emotional connection to them.” 1

Because mobile devices have fundamentally changed the users expectations, it’s important that designers design with a user-center design process to arrive at their solution.


There are four mobile delivery methods that a designer can use to achieve a user-centered design:

  • Mobile-specific site: which is optimized for mobile devices.
  • Responsive site: this type of site reorients itself for mobile devices.
  • Native app: an application that’s installed on the user's device. These are self-contained, and every screen of the app is defined up front.
  • Hybrid app: this can offer a little more flexibility, as it’s viewed in a browser. It loads content from the web and provides users with an “app-like” interface.

"People appreciate iOS apps that feel as though they were designed expressly for the device. For example, when an app fits well on the device screen and responds to the gestures that people know, it provides much of the experience people are looking for. And, although people might not be aware of human interface design principles, such as direct manipulation or consistency, they can tell when apps follow them and when they don’t. As you begin designing an iOS app, be sure to understand what makes iOS devices unique, and learn how to incorporate HI design principles so that you can deliver a user experience people will appreciate.” iOS Human Interface Guidelines


Mobile Information Architecture (IA)

Some of the more popular patterns that are practiced in mobile and tablet design are: Hierarchy, Hub & Spoke, Nested Doll, Tabbed View, Bento Box and Filtered View.

Hierarchy pattern is a standard site structure with an index page and a series of sub pages. If you are designing a responsive site, you may be restricted to this; however, introducing additional patterns could allow you to tailor the experience for mobile.





Hub & Spoke is pattern gives users a central index from which users will navigate out. It’s the default pattern on Apple’s iPhone. Users can’t navigate between spokes, but must return to the hub instead.





Nested Doll leads users in a linear fashion to more detailed content. When users are in difficult conditions, this is a quick and easy method of navigation. It also gives the user a strong sense of where they are in the structure of the content due to the perception of moving forward and then back.






Tabbed View is a collection of sections tied together by a toolbar menu. This allows the user to quickly scan and understand the complete functionality of the app when it’s first opened.





Bento Box or dashboard pattern brings more detailed content directly to the index screen by using components to display portions of related tools or content. This pattern is more suited to tablet than mobile due to its complexity. It can be really powerful as it allows the user to comprehend key information at a glance, but does heavily rely on having a well-designed interface with information presented clearly.






Filtered View allows the user to navigate within a set of data by selecting filter options to create an alternative view. Filtering, as well as using faceted search methods, can be an excellent way to allow users to explore content in a way that suits them.





It’s important to understand how mobile and tablet interactions differ when compared to their desktop counterparts and designers need to consider the above methods and patterns throughout the entire design process - from R&D (Research & Development) to the final product - when designing for mobile because they impact the user.

There are also some interactions designers need to pay attention to when designing for mobile and tablet devices. These include: ergonomics, gestures, transitions, and mobile-specific interaction patterns.


Ergonomics

It’s important to pay attention to device dimensions as well as the practical components of a device. The way the user holds the device can influence how easy it is for the user to reach parts of the screen or “hit areas.” These are the areas of the screen the user touches to activate something and require enough space for the user to touch - the smallest button size is 44px square.


Gestures

All devices enable gestures which makes it a crucial component of mobile interaction design. Some of the gestures include: press, long press, double press, small swipe, large swipe, pinch/spread. There are some standards and patterns for developing gestures on touch-based devices that you can read more about here.


Transitions

These are interactions between application states that help tell a story or establish a gestural metaphor, and they help facilitate recall and prevent users from getting lost. Some of the basic interactions include:




Common Patterns

Because mobile devices have less space, along with the users viewing conditions often affecting their experience, it can be a challenge for designers to provide users with an efficient and positive user experience. Some of the most valuable interaction patterns include those used to improve navigation, select content, sign in/out, and negotiate forms.


Main Navigation

Main or “primary” navigation is a visual manifestation of our website's or application’s information architecture.


Selecting Content

Pressing links to activate content facilitates flow, making it easy for the user to quickly select content with one hand. If done well, this transition also increases user engagement.


Sign-In

Entering a username, email and password is an essential process for some applications. As designers, we can ensure that it’s as painless as possible.


Forms

Filling out forms on a mobile device can be a frustrating experience, especially if that form appears on a website designed for a desktop and lacks a mobile version. Make the process easier for the user by paying attention to the small details. You can also use native forms.


Getting the interactions accurate on a mobile device is essential. Today’s solutions become tomorrow’s standards and guidelines. It’s important to keep in mind the details that define a mobile layout and mobile-specific interactions. In doing this, designers can create intuitive mobile experiences that are then translated through the visual design. Below are some additional things to keep in mind when designing for mobile and tablet.

  • The structure of the layout needs to be taken into consideration as well as how to best utilize the available screen space; a grid system will help to achieve this.
  • Keep in mind that on a mobile device the user typically only moves vertically through content, whereas on desktop, the user is able to view content in any direction one wants.
  • Interactions must be user-friendly, and the visuals need to reinforce those interactions.
  • Sizing and placement of elements should ensure ease of use, and space to scroll and swipe must be sufficient to allow a user to easily navigate through these elements.
  • Group like or related items and establish a vertical rhythm that supports the communication of the content hierarchy.
  • As previously mentioned, by utilizing a grid system and placing elements on the baseline grid, it will make reading and understanding content easier, as well as create structure within the design.
  • And finally, using color is a valuable tool for communication. While it can be very subjective, it can be used to convey tone or style, to differentiate between sections, static items and interactive functionality and can also be used in communicating status changes.





References
http://www.uxbooth.com/articles/designing-for-mobile-part-1-information-architecture/
http://www.uxbooth.com/articles/designing-for-mobile-part-2-interaction-design/
http://www.uxbooth.com/articles/designing-mobile-part-3-visual-design/
http://www.smashingmagazine.com/2012/08/10/designing-device-orientation-portrait-landscape/
https://css-tricks.com/a-couple-of-best-practices-for-tablet-friendly-design/
http://www.lukew.com/ff/entry.asp?1197
https://developer.apple.com/library/ios/documentation/UserExperience/Conceptual/MobileHIG/




Wednesday, March 15, 2017

Responsive Design

Responsive Design. What is it?

“Responsive Web design is the approach that suggests that design and development should respond to the user’s behavior and environment based on screen size, platform and orientation. The practice consists of a mix of flexible grids and layouts, images and an intelligent use of CSS media queries. As the user switches from their laptop to iPad, the website should automatically switch to accommodate for resolution, image size and scripting abilities. In other words, the website should have the technology to automatically respond to the user’s preferences. This would eliminate the need for a different design and development phase for each new gadget on the market.”1

That said, with the abundance of different screen sizes, it’s not realistic, efficient or even practical for that matter, to design for all of them individually. Instead, designing with breakpoints in mind is one way to take advantage of designing responsively. 'Smashing Magazine' has a great article: Logical Breakpoints for Your Responsive Design, for further reading.

Responsive web design requires a more abstract way of thinking. More than just adjustable screen resolutions and automatically resizable images, it requires a new way of thinking about the design as a whole. Some of the concepts currently being practiced are: fluid layouts, media queries, and scripts that can reformat web pages and mark-up (code) effortlessly or automatically. Let's take a look at these features, and others, in more detail.


Adjusting Screen Resolution

As previously mentioned, there’s a wealth of varying screen resolutions, definitions and orientations. Many new devices are able to switch from portrait to landscape and vice versa at the user’s whim. But how is a designer supposed to design for these situations?

One option is to group screen sizes into major categories, design for each of them, and make each design as flexible as necessary. But that can be overwhelming and inefficient. Plus, who knows where technology will be in the next few years? Since more and more screen sizes and resolutions are introduced so frequently, how do we deal with this situation?

Flexible or Fluid Layouts are when structural elements break a layout's form when pushed enough. When first developed, designs weren’t that flexible and often couldn’t adjust from large to small screen. Now, we’re able to make things more flexible. Images can be automatically adjusted, and there are other workarounds. While this isn’t a complete fix, flexible layouts give designers and developers more options.


Flexible/Fluid Images

Working with images in a fluid layout can be tricky, but there are a number of techniques to resize images proportionately, many of which are easily done. The most popular option is to create a CSS property for max-width.


As long as no other width-based style overrides this rule, every image will load in its original size, unless it becomes narrower than the original width, and the code would look like this:



One key thing to keep in mind when working with images is space and download time. Be sure you know the current best practices and communicate with the dev team to ensure that image resolution and download times are efficient.


Custom Layout Structure

If your design has extreme size changes, you may want to consider changing the layout altogether. You can do this either through a separate style sheet, or more efficiently, through a media query. Types of Media Query Methods are: CSS 2.1 and CSS3 Media Queries, and JavaScript.


Showing or Hiding Content

When moving from a larger screen to a mobile device, showing every piece of content usually isn’t necessary, nor is it always the best option. There are some best practices for mobile environments: simpler navigation, more focused content, lists or rows instead of multiple columns.

Fortunately, CSS has been allowing us to show and hide content with ease for years, and it’s done by using the display property in your CSS document. Values can be: none, in-line or block. This shouldn’t be confused with the property visibility; this just hides the content, whereas the display property gets rid of it altogether.


Touch screens vs Cursors

Touch screens obviously have a whole different set of design guidelines than traditional mouse-based interactions, as well as different capabilities. Fortunately, adapting your design for both doesn’t take a lot of effort, but it does require keeping additional concerns in mind. For example, there are no hover states on a touch screen and you can't do swiping gestures with a mouse, etc.

With the mobile world continually changing, responsive design is not the only option, it’s but one trick in the bag. When implemented correctly, responsive design can improve the user experience. That said, besides saving designers and developers some frustration, responsive web design also happens to be best for the user. Every custom solution makes for a better user experience. With responsive design, we can create custom solutions for a wider range of users, on a wider range of devices.

It might not completely solve it for every user, device and platform, so as new devices, resolutions and technologies continue to be available, designers and developers need to continually be aware of best practices.



Additional Resources

Wednesday, March 8, 2017

Basic CSS & HTML

The below content has been taken from HTML Dog. More tutorials, techniques and examples can be found here.
CSS, or Cascading Styles Sheets, is a way to style and present HTML. Whereas the HTML is the meaning or content, the style sheet is the presentation of that document. Styles have a format of ‘property: value’ and most properties can be applied to most HTML tags.


Applying CSS

There are three ways to apply CSS to HTML: In-line, internal, and external. Even though the best-practice approach is to have the HTML be a stand-alone document, below is a brief explanation of each.


In-line

In-line styles are put straight into the HTML tags using the style attribute and look like this:



This will make that specific paragraph red.


Internal

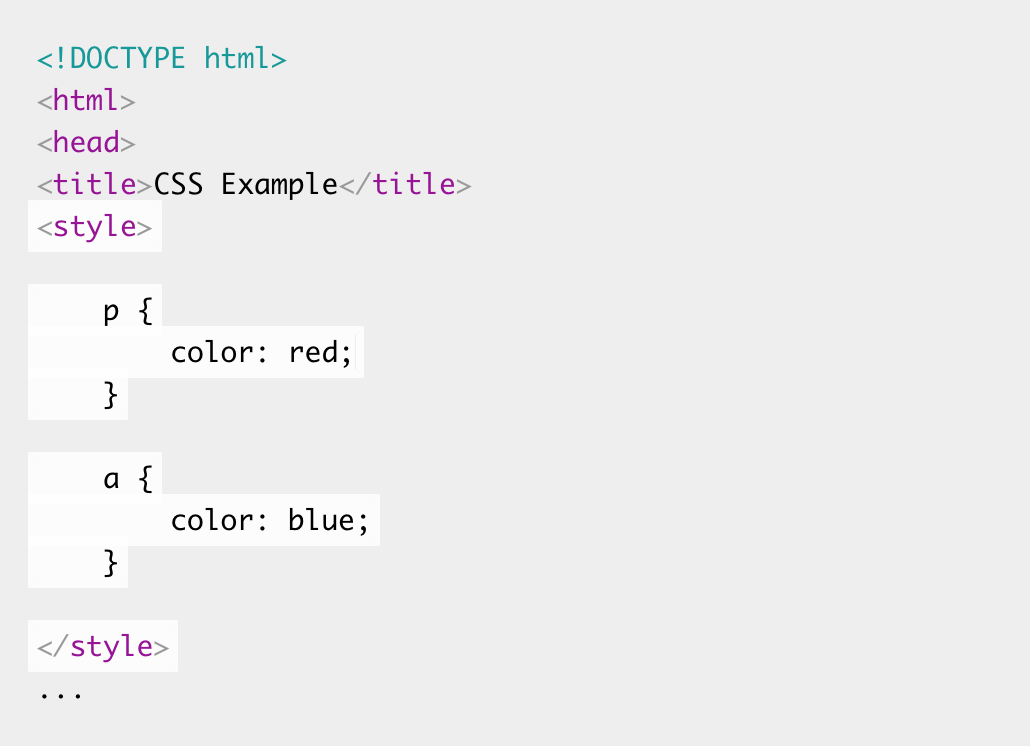

Embedded, or internal, styles are used for the whole page. Inside the head element, the style tags surround all of the styles for the page.



This will make all of the paragraphs in the page red and all of the links blue.


External

External styles are used for the whole, multiple-page website. There is a separate CSS file, which will simply look something like this:




If this file is saved as “style.css” in the same directory as your HTML page, then it can be linked to in the HTML like this:



Selectors, Properties, and Values

Whereas HTML has tags, CSS has selectors. Selectors are the names given to styles in internal and external style sheets. For our purposes we will be concentrating on HTML selectors, which are simply the names of HTML tags and are used to change the style of a specific type of element.

For each selector there are “properties” inside curly brackets, which simply take the form of words such as color, font-weight or background-color.

A value is given to the property following a colon (NOT an “equals” sign) and semi-colons separate the properties.



This will apply the given values to the font-size and color properties to the body selector.

When this is applied to an HTML document, text between the body tags (which is the content of the whole window) will be 14 pixels in size and navy in color.


Lengths and Percentages

There are many property-specific units for values used in CSS, but there are some general units that are used by a number of properties, and it is worth familiarizing yourself with these before continuing.
  • px (such as font-size: 12px) is the unit for pixels.
  • em (such as font-size: 2em) is the unit for the calculated size of a font. So “2em”, for example, is two times the current font size.
  • pt (such as font-size: 12pt) is the unit for points, for measurements typically in printed media.
  • % (such as font-size: 80%) is the unit for percentages.


Color

The following values to specify red can all produce the same result with the following:
  • red
  • rgb(255,0,0)
  • rgb(100%,0%,0%)
  • #ff0000
  • #f00

Predefined color names include aqua, black, blue, fuchsia, gray, green, lime, maroon, navy, olive, orange, purple, red, silver, teal, white, and yellow. transparent is also a valid value.


Text

You can alter the size and shape of the text on a web page with a range of properties. They include:

font-family: this is the font itself, such as Times New Roman, Arial, or Verdana.

font-size: the size of the font

font-weight: this states whether the text is bold or not. Most commonly this is used as font-weight: bold or font-weight: normal but other values are bolder, lighter, 100, 200, 300, 400 (same as normal), 500, 600, 700 (same as bold), 800 or 900.

font-style: this states whether the text is italic or not. It can be font-style: italic or font-style: normal.

text-decoration: this states whether the text has got a line running under, over, or through it. This property is usually used to decorate links and you can specify no underline with text-decoration: none.

text-transform: this will change the case of the text.

  • text-transform: capitalize turns the first letter of every word into uppercase.
  • text-transform: uppercase turns everything into uppercase.
  • text-transform: lowercase turns everything into lowercase.
  • text-transform: none I’ll leave for you to work out.

letter-spacing: properties are for spacing between letters or words. The value can be a length or normal.

line-height: property sets the height of the lines in an element, such as a paragraph, without adjusting the size of the font.

text-align: property will align the text inside an element to left, right, center, or justify.

text-indent: property will indent the first line of a paragraph, for example, to a given length or percentage. This is a style traditionally used in print, but rarely in digital media such as the web.


Margins and Padding

margin and padding are the two most commonly used properties for spacing out elements. A margin is the space outside something, whereas padding is the space inside something.



This leaves a 20-pixel width space around the secondary header and the header itself is far from the 40-pixel width padding.

The four sides of an element can also be set individually. margin-top, margin-right, margin-bottom, margin-left, padding-top, padding-right, padding-bottom and padding-left are the self-explanatory properties you can use.


Putting It All Together

The code below covers all of the CSS methods in this section. If you save this as your CSS file and look at the HTML file then you should now understand what each CSS property does and how to apply them. The best way to fully understand all of this is to mess around with the HTML and the CSS files and see what happens when you change things.



Background Images

Used in a very different way to the img HTML element, CSS background images are a powerful way to add detailed presentation to a page. To jump in at the deep end, the shorthand property background can deal with all of the basic background image manipulation aspects. The properties include:




background-color: which we have come across before.

background-image: which is the location of the image itself.

background-repeat: which is how the image repeats itself. Its value can be:

  • repeat: the equivalent of a “tile” effect across the whole background
  • repeat-y: repeating on the y-axis, above and below
  • repeat-x: repeating on the x-axis, side-by-side
  • no-repeat: which shows just one instance of the image

background-position: which can be top, center, bottom, left, right, a length, or a percentage, or any sensible combination, such as top right.

Background-images can be used in most HTML elements - not just for the whole page (body) and can be used for simple but effective results.



Further reading:
Technical Web Typography: Guidelines and Techniques
The Future Of CSS Typography



References:
http://www.htmldog.com/guides/css/beginner/
http://www.htmldog.com/guides/css/beginner/selectors/
http://www.htmldog.com/guides/css/beginner/colors/
http://www.htmldog.com/guides/css/beginner/text/
http://www.htmldog.com/guides/css/intermediate/backgroundimages/





Wednesday, March 1, 2017

Web Design Elements Continued


According to Patrick McNeil, there are 10 Web Design Elements that you Shouldn’t Overlook. They are:
  1. Links
  2. Forms
  3. Button Behavior
  4. Form Validation
  5. Status Messages: Errors, Warnings, Confirmations, etc.
  6. Extending the Background on Larger Screens
  7. Base HTML Elements
  8. Website Emails
  9. Page Stretching
  10. Animations: Pop-ups, Tooltips, Transitions, etc.

Designers who keep the above elements in mind, plan and design for them, will come out further ahead. Aside from keeping the developers guessing, it gives the designer more control over the design of the finer details. You’ll be creating a higher quality product, and in the long run, you’ll also reduce the cost of production. Let’s take a look at the above elements in more detail.


Links

Include the following states for ALL links on your website:
  • Normal - default state of a link
  • Visited - link whose target HAS been visited
  • Active - link being clicked by user
  • Hover - when user mouses over link





Forms

Two of the most important considerations when laying out a form are:
  • Form label - description of the forms purpose
  • Input fields and labels - plan for how these fields will be styled and oriented relative to the fields (inside box, above, left, etc.)



Button Behavior

The four states of a button are:
  • Default - default state of a button
  • Hover - when user mouses over the button
  • Click - button that HAS been clicked
  • Disabled - typically used for a validation process



Form Validation

This is the critical point where the website communicates the user requirements and errors in a form. There are three things to consider:
  • Required Fields - these fields should be clearly indicated (usually by asterisk).
  • Real-time Validation - informs the user of any problems with the data they entered
  • Post-back Validation - happens after the user submitted the form


Status Messages: Errors, Warnings, Confirmations, etc.

Users typically need feedback after performing actions on websites. Be sure to consider actions that a user might go through on your website and plan for the messages that will need to be communicated.


Extending the Background on Larger Screens

If you’re not using a simple background for your website, e.g. solid color, then you need to think about how your site will look on larger screens. If you’re using an image or pattern/textured background, and you’ve designed it to a 960 pixel width, be sure to design and communicate with the developer what it will look like beyond the 960 pixel width. Does the image fade? Does it extend? etc.


Base HTML Elements

For copy-heavy websites, the design and styling of base HTML elements are fundamental and should not be overlooked. Here are the base elements to always plan for:
  • Paragraphs
  • Headings 1 through 6
  • Unordered and Ordered Lists
  • Tabular Data
  • Form Fields
  • Images
  • Bold and Italicized text



Website Emails

Carefully review the contents of the website at the planning stage to look for any emails that might be sent. Some of the most common are:
  • Mailing list sign-up confirmation
  • Registration confirmation
  • Form-completion confirmation (e.g. contact form)
  • Order verification after a purchase


Page Stretching

How will the design of your website “stretch” to accommodate additional content? Preparing alternate versions of a layout with much more content can be extremely helpful in demonstrating how to plan for such a scenario.

Animations: Pop-ups, Tooltips, Transitions, etc.

Each of these animated elements has a distinct visual style that must be accommodated all on its own. Some of the most common places animations show up are in:
  • Tooltips - those pop-ups when users mouse over elements.
  • Image rotators - slideshow transitions and styles.
  • Lightbox - you can style not only the lightbox itself, but also the transition to it.

Wednesday, February 22, 2017

The Psychology of Web Design, Part 1: Content & Space

A well designed website is more than just delivering content and making it look good. When people come to your site they immediately develop an impression about you, your website and what you stand for. Whether positive or negative, their opinion lies in your hands as the designer of the website, and there are many resources to help designers create effective visuals that play into the psychology of those viewing your site.

Content, Space, Color and Typography are the main components that have the biggest impact on a viewer, and it’s up to the designer to understand how using different design elements affects the mood, attitude and experience the viewer will have while browsing your website.



Content

People visit websites to access information they need, and the design of that website aids in them finding the information they need quickly and with ease.

When websites were first developed, it was common to see pages too full of content. They typically had no structure, and it was difficult to find information and read through it to get what they needed. The user often left the site overwhelmed and had a poor experience.

When designing a site now, designers really need to condense and organize their content, as hiding or presenting too much information can lead to a possible loss in potential business. There should be a happy medium between providing adequate and needed content, while not overwhelming the user. This will lead to a good user experience as well as setting the tone for you and your organization.

Keep your content concise, organized and easy to read and navigate in order to aid in the psychology of your users having a positive experience on your website.



Space

The organization of a website can greatly affect how a user interprets a site, so organizing content should be a high priority. When organizing content, the designer should take into account the space that it takes up as well as the white space that’s used or not used!
“…white space is often referred to as negative space. It is the portion of a page left unmarked: margins, gutters, and space between columns, lines of type, graphics, figures, or objects drawn or depicted.”1

The white space on a website plays an important role because visually it gives the user a resting place, and it’s a sort of pause that gives the user a chance to rest their eyes.

Take, for example, a website utilizing every inch of screen space. This site starts to feel chaotic and without any negative space present, there is nothing for the user to focus his eye to take a visual break.

Keeping things simple by having a well organized website that uses adequate white space translates into a good user experience.

These are two of the tools you’ll need to create a visually engaging site that encourages visitors to return. Read the next post about color.



References:
http://en.wikipedia.org/wiki/White_space_%28visual_arts%29
http://thenextweb.com/dd/2014/10/22/psychology-web-design/




The Psychology of Web Design, Part 2: Color

A website is often dictated by the site’s brand identity as well as the target audience, but how colors are used plays a part in how the user feels when browsing the site. The types of colors used also play into the psychology of your design and go hand-in-hand in influencing people's behavior. Because of this, designers turn to the psychology of color to help them create websites that leave the user wanting to come back.

If a website’s color gives the wrong impression, it can suggest inexperience, unprofessionalism or even untrustworthiness. However, if it’s the right impression, it will give the opposite effect. Designers do not rely solely on the meaning, characteristics and emotional attitudes of colors. They have to take into consideration the company and its branding. That being said, it is good to understand how color affects us.



Color Associations

(The following material is referenced from "The Principles of Beautiful Web Design", by Jason Beaird and "The Psychology of Color in Web Design" by Neeru)


Red

Red is a stimulating, exciting color. It is associated with passion, power and sometimes anger. It can be used for warnings or to show danger, but it can also suggest strength, determination and boldness.

Too much red can make us feel over-stimulated and irritated. The darker shades of red such as burgundy and maroon have a rich, indulgent tone. These colors might be good for selling wine or living well. Brighter reds, like true red or tomato, are great for youthful websites that want to suggest energy and eagerness to leap before they look.




Pink

Pink tends to make people feel loved and protected, but also can cause feelings of lethargy. It’s also associated very strongly with youthful femininity. It is playful and brings to mind bubble gum and innocence. It is ideal for websites that hearken back to olden days, or that target a particularly feminine audience.




Orange

Similar to red, orange is an active and energetic color. It is thought to promote happiness, and represents sunshine, enthusiasm and creativity. Orange is a more balanced and less overwhelming color, as well as being more informal and less corporate feeling than red. Because orange does not show up in nature often, it tends to jump out at us making it vibrant, energetic, friendly and inviting. It is ideal for designs that need movement and energy. Websites that want to showcase their creativity often choose orange because it is unique and exciting, but it still has the comfort of a warm color. Orange also stimulates metabolism and appetite, so it is a good color to use for cooking and food. Bright orange can reduce depression and sadness.




Yellow

Yellow is often considered the most energizing color. It represents joy or optimism and can energize you and help you think more clearly. Some say that too much yellow can be overpowering and cause arguments.

From the earliest ages, people learn to associate yellow with the sun, so it becomes associated with warmth and happiness. That makes bright yellow perfect for sites designed for children, as it grabs their attention.

More subtle shades of yellow have more complex associations. Darker shades can suggest antiquity, suggesting yellowed parchment. Because of that, it can also be associated with wisdom and curiosity. It therefore is great for sites that want to demonstrate a sense of authority and intelligence.




Green

Most commonly used in association with nature, green is a soothing color that symbolizes growth, freshness and hope. It can also represent wealth, stability and education and can give users feelings of calm, rejuvenation, affluence and optimism.

Darker shades are more linked to money, so sites that want to suggest affluence, growth and stability often use those shades. Lighter shades are more associated with spring and growth, so websites that want to reflect relaxation, freshness and honesty often use lighter shades.

Green is also directly associated with the environmental movement, so sites that aim to broadcast ethical standards often use green.




Blue

Blue symbolizes openness, intelligence, and faith and has been found to have calming effects. It has an element of spirituality about it and conveys a sense of stability and clarity of purpose. It is also appealing because of it's association with the sky and sea. Blue calls to mind dependability, trustworthiness and security.

In China, blue is associated with immortality, while people in the Middle East view blue as a color of protection.

Blue and green are known to inspire peaceful feelings, and people are often able to concentrate better and work in rooms painted in soft blues and greens.

Most corporate and business websites use dark blues to call to mind their experience, success and reliability. Light blues are best for friendly, open websites, like social media sites.




Purple

Purple balances the stimulation of red and the calming effects of blue. It has long been associated with royalty, power and nobility, so it is no surprise that dark shades of purple imply wealth and luxury. Lighter shades suggest fields of lavender and are associated with spring and romance.

Websites that look mysterious, yet elegant, use dark purples. Those sites that opt for lighter shades will speak to people looking for romantic items or ideas.




Black, White & Grey

Black, white and grey are usually background colors, allowing brighter colors to make the real impact. Still, they call to mind their own associations.

Black suggests power, modernity and sophistication, while white suggests cleanliness, simplicity and innocence. These competing associations play off of each other as nicely as the colors themselves do, making black and white designs especially strong.

The color white is often overlooked in design, but white can help promote the idea of clean power. In the west, it is a symbol of perfection, light and purity. In China, white means death and mourning. With these cultural distinctions, it should remind you to research the colors association of your target audience because they may vary from your own perception.

Grey is a neutral color. When used well, it is associated with tradition, somberness and calmness. When used badly, however, it can cause a design to lack energy.

All of these colors are best for websites that want to call to mind tradition and seriousness, like news sites.




Browns

Browns, which include creams and tans, are often used for textured backgrounds. Backgrounds that mimic paper, fabric or stone are usually brown, and as such, browns give a site a sense of wholesomeness and coziness.

Creams are calm, elegant and pure, making them a great background color for a website that wants to imply a sense of tradition. Tans are conservative and bring to mind piety. They can be dull, but they can also be reassuring, which makes them ideal for a site that doesn’t want to be too bold or outrageous. Dark brown feels wholesome and reliable, like a loaf of bread. It is associated with warmth and comfort. Sites that want to demonstrate experience and reassurance often use brown.





Color Temperatures

Warm colors range from red to yellow, orange, pink, brown and burgundy. They represent heat and motion because of their link to the sun and fire. When in the vicinity of cool colors, the warm colors are dominant.




Cool colors are colors from blue to green including some shades of violet. Cool colors are calming and can help reduce tension. Cool colors tend to recede, making them good for backgrounds and larger elements on a page that won't distract from the content.





Color Value

The lightness or darkness of a color is its chromatic value. Adding white to a color provides a tint of that color, and a shade of that color is made by adding black. This is important because a color palette works well if the individual colors are the same value.



Saturation

Saturation is the intensity of a color, the strength or purity of that color. When you de-saturate, you take out color. A vivid blue will call more attention to itself than a dull orange. Dull colors are softer and more gentle, creating a calm mood.



Color Schemes

Monochromatic: one color with different tints and shades.
Analogous: colors that are adjacent to each other on the color wheel.
Complementary: colors that are opposite to one another on the color wheel.
Split Complementary: use the two colors that are adjacent to your base color's complement.
Triadic: push the split complements out one notch. The colors are equally balanced on the color wheel.
Tetradic: made up of two complementary color pairs rotated around the color wheel; they form a rectangle on the color wheel or double complementary.




Tools for Color Palettes

Paletton
Adobe Color CC



Side note: In Photoshop we’ll use Hexadecimal Notation colors which is typically referred to as a “HEX color.”



How many colors do you need to design a website?

It depends on the complexity of the site. Some websites assign a different color for each page of the site to help users know their location and this can equal up to 5 or 6 colors. Other sites, even complex ones, use 1 to 3 colors.

As you can see, using color to help convey a positive user experience in your website is in your hands and color largely depends on the tint (lightness), hue (type) and shade (darkness) of the color, as well as how much of the color you choose to use.

In the next post, we'll learn about the importance of typography.



References:
http://www.vandelaydesign.com/the-psychology-of-color-in-web-design/
